SpaceHub – Power Station

Who hasn’t experienced the daily struggle with smartphones, tablets, power banks and other devices running out of power, followed by the search for a nearby outlet for the charging cable, which also requires a specific power adapter?

SpaceHub Power Station from Adapt relieves employees at computer workstations of this burden and provides a compatible power supply or charging option within easy reach.

IT hardware manufacturers are now required to standardise on USB-C and Thunderbolt for connections on new devices. That’s why Adapt Germany has developed a practical and powerful add-on exclusively for SpaceArm monitor mounts, which enables simultaneous power supply to multiple devices while reducing cable clutter on the worksurface.

  • Safer way to charge your device
  • Keeps wires intact and in view, avoiding trip hazards
  • Because SpaceHub is fixed to the base of SpaceArm, it does not take up any more valuable desk real estate, and devices can be plugged in one-handed, as it won’t slide around the desk.
  • SpaceHub presents a minimal footprint and complements the simple, clean aesthetics of the SpaceArm.
  • SpaceHub can be purchased with SpaceArm or separated to be retrofitted to existing installations of CC or CL base mounts.

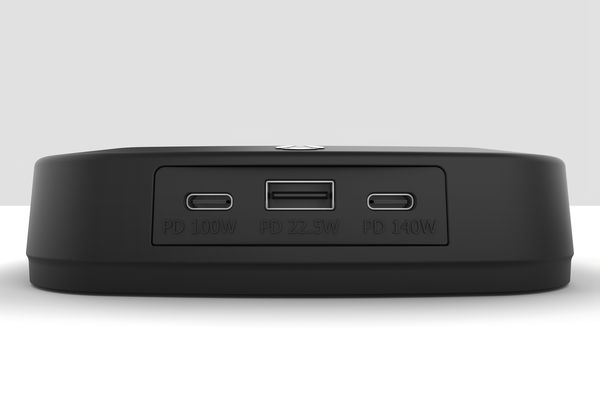

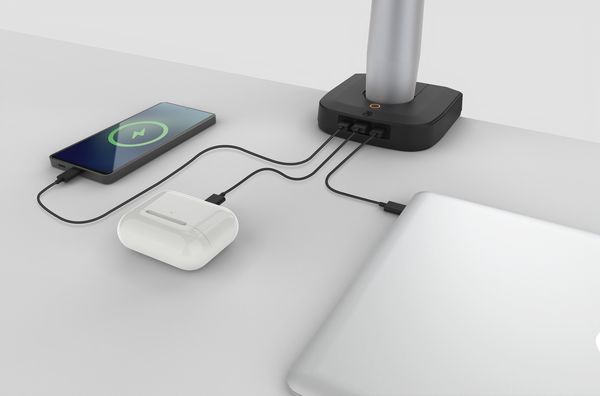

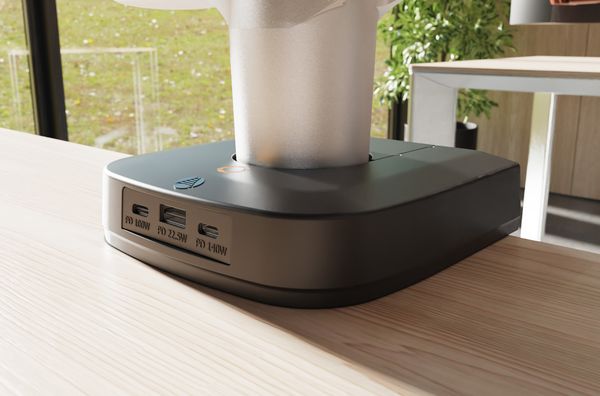

  • SpaceHub – Power Station supplies up to 140W via USB-C or can power up to three devices to a combined maximum of 140W via two USB-C and one USB-A socket.
  • “Plug and Play”. No tools are required to install SpaceHub; it simply slides over the SpaceArm base plate and locks into place with a rear moulded cover.

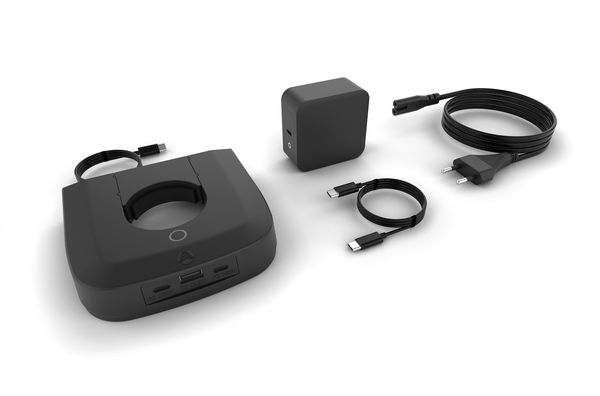

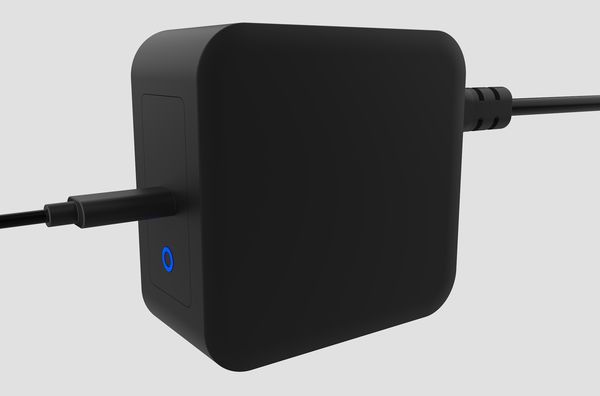

  • SpaceHub is powered by a transformer that sits below the desk, making light work of cable management and keeping the working surface clear and free from unwanted cables. One USB-C power cable fits neatly into the rear of SpaceHub, eliminating the risk of accidental unplugging.

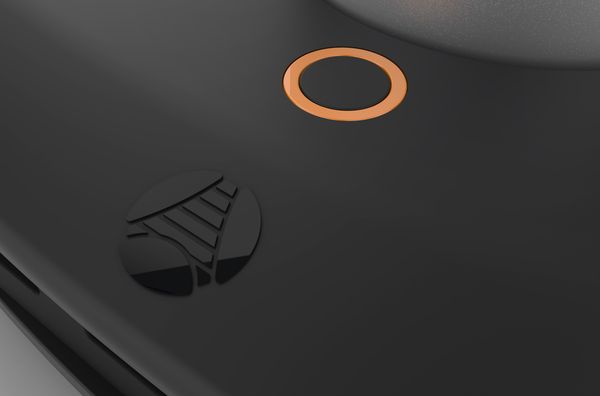

  • A neat ring of LED light, in Adapt signature orange, shows that SpaceHub is powered up.

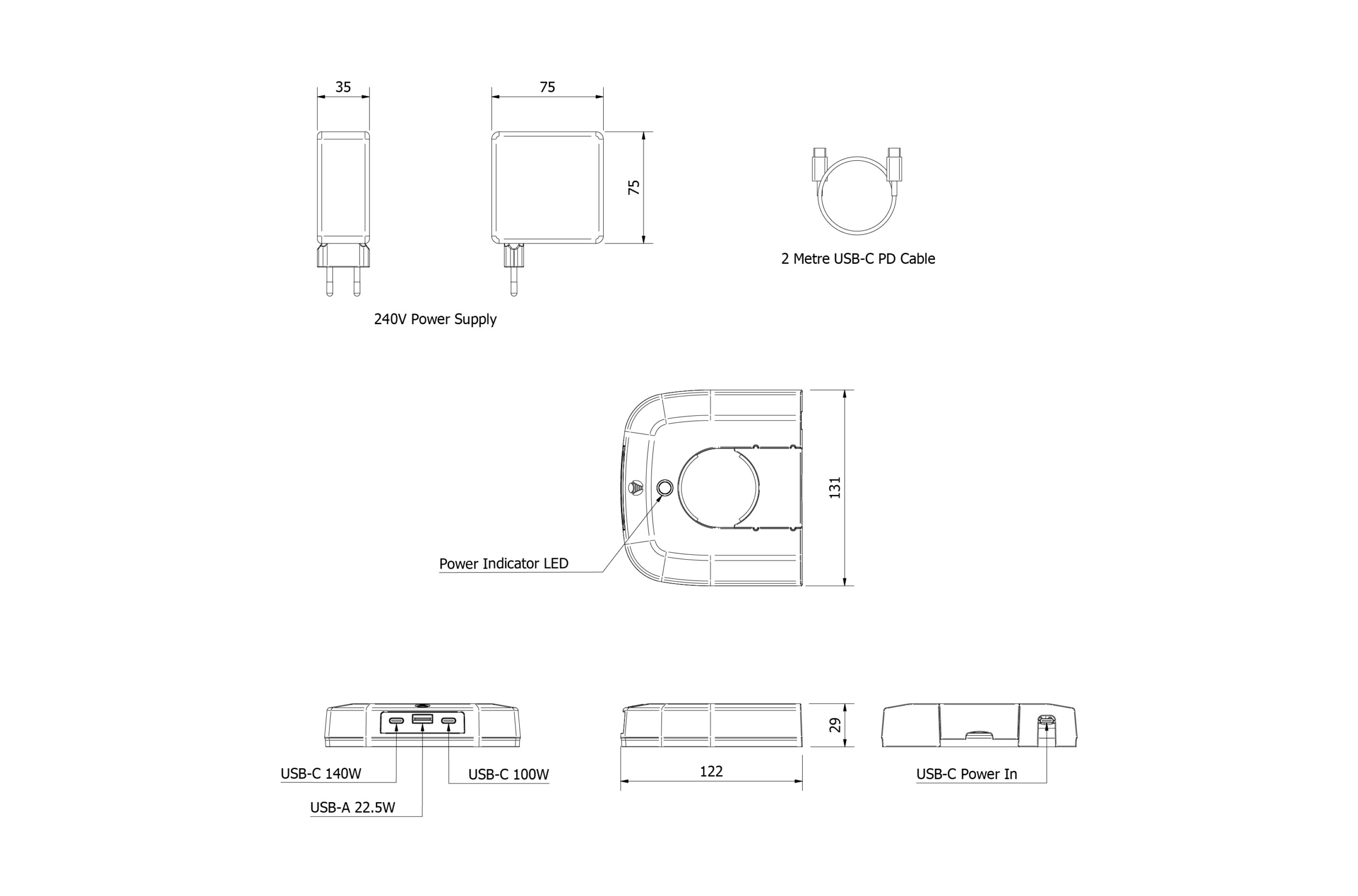

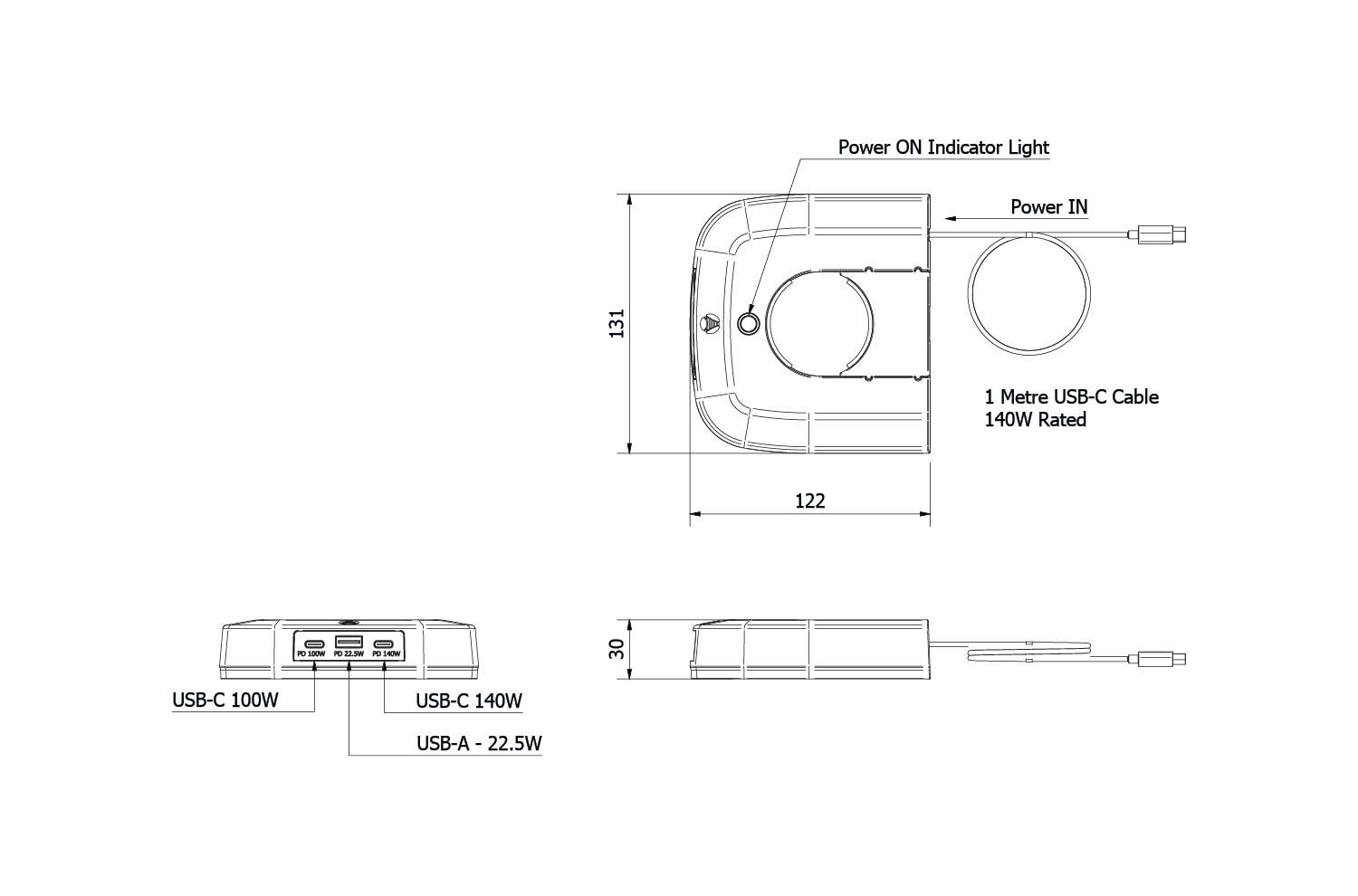

  • Dimensions
    Space Hub - Technische Zeichnung 1

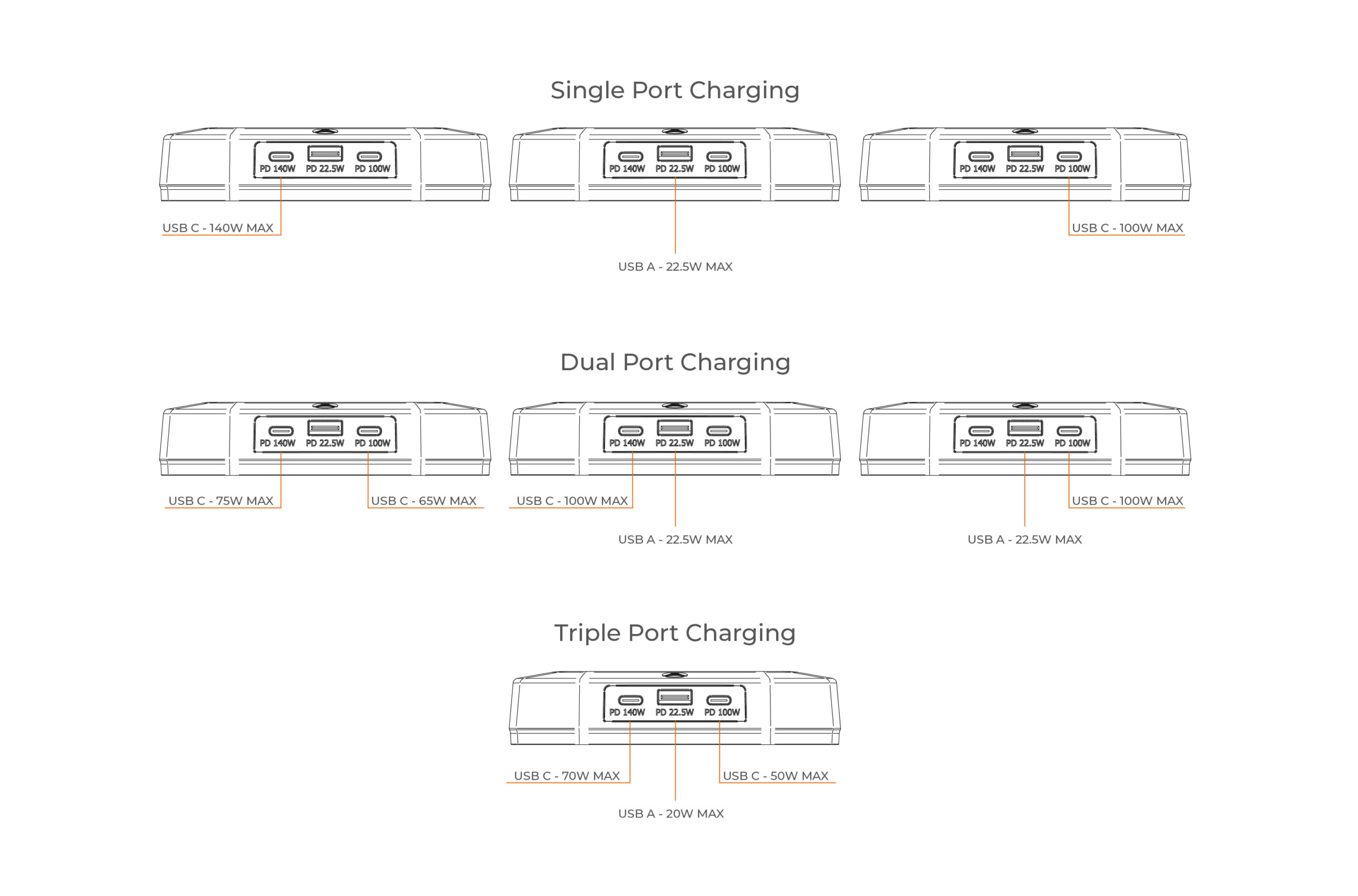

  • Application Options
    Space Hub - Technische Zeichnung 2
  • Power supply – 100~240V AC
  • Type – EU two-pin
  • Input-Type – USB-C PD
  • Input Voltage – 29V x5A
  • Note: Only USB-C high-power rated cables should be used to avoid damage
  • Output: Typ C 1 –
    5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A, 28V=5A, 3.3-28V 5A (140W MAX)
  • Output: Typ USB-C 2 –
    5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A, 3.3-20V 5A(100W MAX)
  • Output: Typ USB-C 3 –
    5V=3A, 9V=2A, 12V=1.87 5A (22.5W MAX)
