Multiple Monitor Arms

SpaceArm

Research shows that working from two or more monitors improves productivity and efficiency and reduces the likelihood of errors.

Adapt SpaceArm ist die Lösung, wenn die ergonomische Qualität eines Arbeitsplatzes auch bei Einsatz von zwei oder mehr Bildschirmen aufrechterhalten werden soll. Das modulare System ist erweiter- und veränderbar und kann somit auf "Wachstum" und Wandel reagieren. Die Investition in Monitorarme ist nachhaltig, der ergonomische Standard bleibt, auch wenn in Zukunft zusätzliche oder andere Monitore eingesetzt werden.

All our monitor arms have been designed to offer scalability, so that you can easily add on more monitors in the future if you need to.

Product information

Key Benefits

Control over the arrangement of multiple screens at the workplace
Can be easily and cost-effectively combined and modified with other components from the SpaceArm system
Promotes performance and well-being of the user

Key Features

Precise arrangement of 2 or 3 screens next to each other (up to a screen width of approx. 58 - 60 cm)
Simultaneous adjustment of several monitors without changing their arrangement in relation to each other
Anti-theft features
Available in the standard colours platinum, black, white and matt white

Mounting Options

The following mounting options are available:

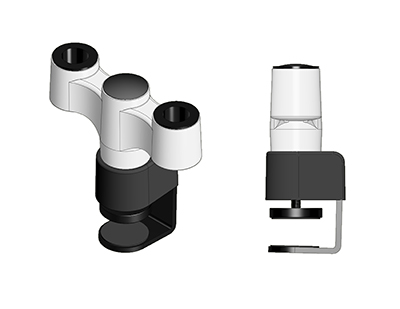

Above Desk Clamp (AC): Above desk clamping systems that is suitable for sliding desktops

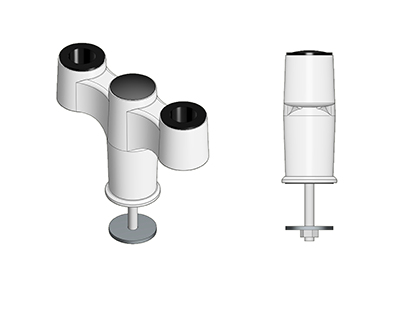

Bolt Through (BT): Secure and subtle, the Bolt Through is fixed through the desktop
C-Clamp (CC): Clamps on without the need to remove or screw through the desktop, allowing quick mounting. Suitable for desktops up to 69mm thick

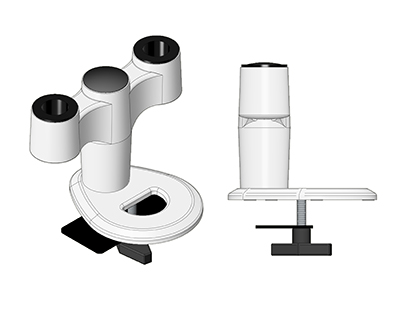

Grommet Mount (GM): Provides hole for cable management (hole must be cut out from desk)

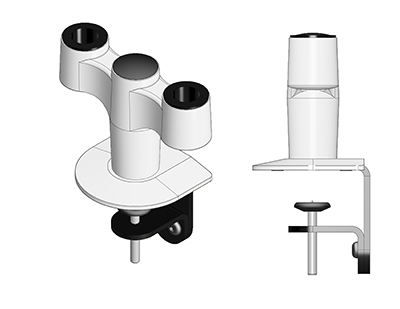

Large CL Clamp (CL): Wider base above desk gives improved balance for heavy duty setups
Mini C-Clamp (MCC): Under desk, low profile clamping system

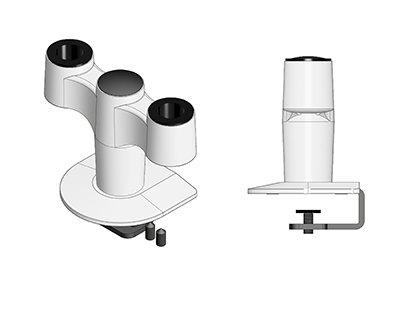

Mini CL-Clamp (MCL): Large base, under desk, low profile clamping system

Further options:

Vertical Mounts: For mounting on slatted walls to free up space to work and for more flexibility. See our own range of SpaceBeams.
Using wide monitors? We have plates that fit between the VESA and the monitor that provide additional sideways adjustment.

Technical

3 monitors on 2 SpaceArm monitor arms
2 monitors on 2 SpaceArm monitor arms
2 monitors on 1 SpaceArm monitor arm
High pressure die-cast aluminium construction
Conforms to VESA 75mm and 100mm mounting patterns
Counterbalance: Lightweight (0.9kg – 4.53kg), Standard (2.26kg – 7.25kg) and heavy duty (6.80kg – 13kg) monitor arm option are also available.
Optionally available: Fixing screw for adjusting the height of the screen
Thermo-fused polyester finish available in Black, Platinum, White or Soft White. Bespoke colours available quantity dependant.

Options

Arm height can be locked using the optional Set Screw/Pin.

Dimensions

Height adjustment: up to 356mm (+/- 178mm)
Maximum arm reach: 556mm
Turning radius of the basic segment: 360°
Rotation radius of second segment: 360°
Turning radius of rail for monitor attachment: 230°
Monitor rotation: 360°
Monitor tilt: 40 degrees (+/- 20°) minimum
Depth: 67mm

SPACEARM

Mounting Options

Adapt offers many different mounting options for most of the most common office furniture systems on the German and European market, especially for the SpaceArm monitor arm system.

Product information

The following mounting options are available as standard solutions for multiple monitor arms:

Above Desk Clamp
(AC)

Bolt Through
(BT)

Grommet
Mount (GM)

Large CL Clamp
(CL)

Mini CL-Clamp
(MCL)

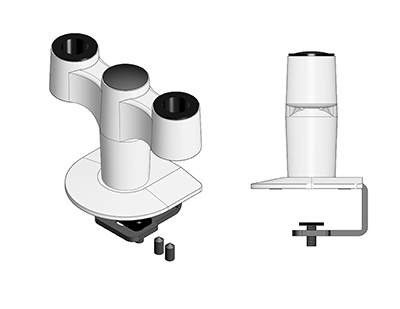

Mini CL-Clamp
(HCL)

For monitors without VESA connections, we offer various adapters that can make the attachment to a VESA mount possible.

Please contact us if you do not immediately find the right solutions for you among our standard range or need or need some advice on what option would work best for you. We would be happy to advise you.

Flexi-Glide for SpaceArm

The trend for larger and larger computer monitors in the workplace increases the challenge of providing employees with a safe and comfortable working environment. Never before has it been so difficult to keep monitors seamlessly aligned whilst maintaining the correct viewing distance and reach. Both factors critical for good eye health and concentration.

Adapt Deutschland, the manufacturer of one of the most comprehensive monitor arm mounting systems available today, has risen to this challenge with their Flexi-Glide rail for SpaceArm.

Designed specifically to meet the needs of clients who require two monitors mounted side-by-side, Flexi-Glide allows maximum flexibility over viewing distance, and working depth, with no compromise on monitor alignment.

Darüber hinaus gilt für Flexi-Glide – wie für alle Adapt-Produkte – eine lebenslange Garantie, um auch zukünftige ergonomische Anforderungen dauerhaft erfüllen zu können.
